Axis pumps deliver full control, wireless smart device programming, quiet DC motor operation, and precise output calibration — features once reserved for much larger, more expensive units. Built for reliable aquarium circulation and return pump duties, these centrifugal pumps are engineered to suit a wide range of tank setups while minimizing noise and power draw.
- Coordinate Feed/Maintenance Modes — Control all compatible pumps from a single unit to simplify maintenance and feeding.
- Prevent back-siphon — With calibration engaged, the pump can continue running without producing flow to prevent siphoning and reduce the risk of air bubbles when normal operation resumes.
With Axis you get exactly what you need. All AI devices include smart control standard — use the myAI® or Mobius app on iOS or Android to set up and program your pump wirelessly. Add Neptune Fusion control via Apex when connected with the Apex and MXM module for advanced automation and integration.
Included Pump Modes
Schedule: Create custom programs with changing flow over time.
Feed: Temporarily reduces flow to prevent food from being cycled into the overflow.
Calibrate: Tune the pump to your aquarium by setting max, min, and neutral flow levels.
Compact, model-dependent footprints to fit a variety of installations and cabinet spaces.
Max Head & Flow Rate: Available across multiple performance tiers to support everything from small tanks to larger systems.
Recommended Aquarium Coverage: Options suitable for nano through larger aquaria.
Power Consumption: Variable, model-dependent with efficient DC motor operation.
Input: 100–240VAC, 50–60Hz, 1A
Barbed Output Nozzles: Multiple adapter options included for common plumbing sizes.
Pump with Integrated Driver
Power Adapter with Universal Plug
Adapter Set
Quick Start Guide

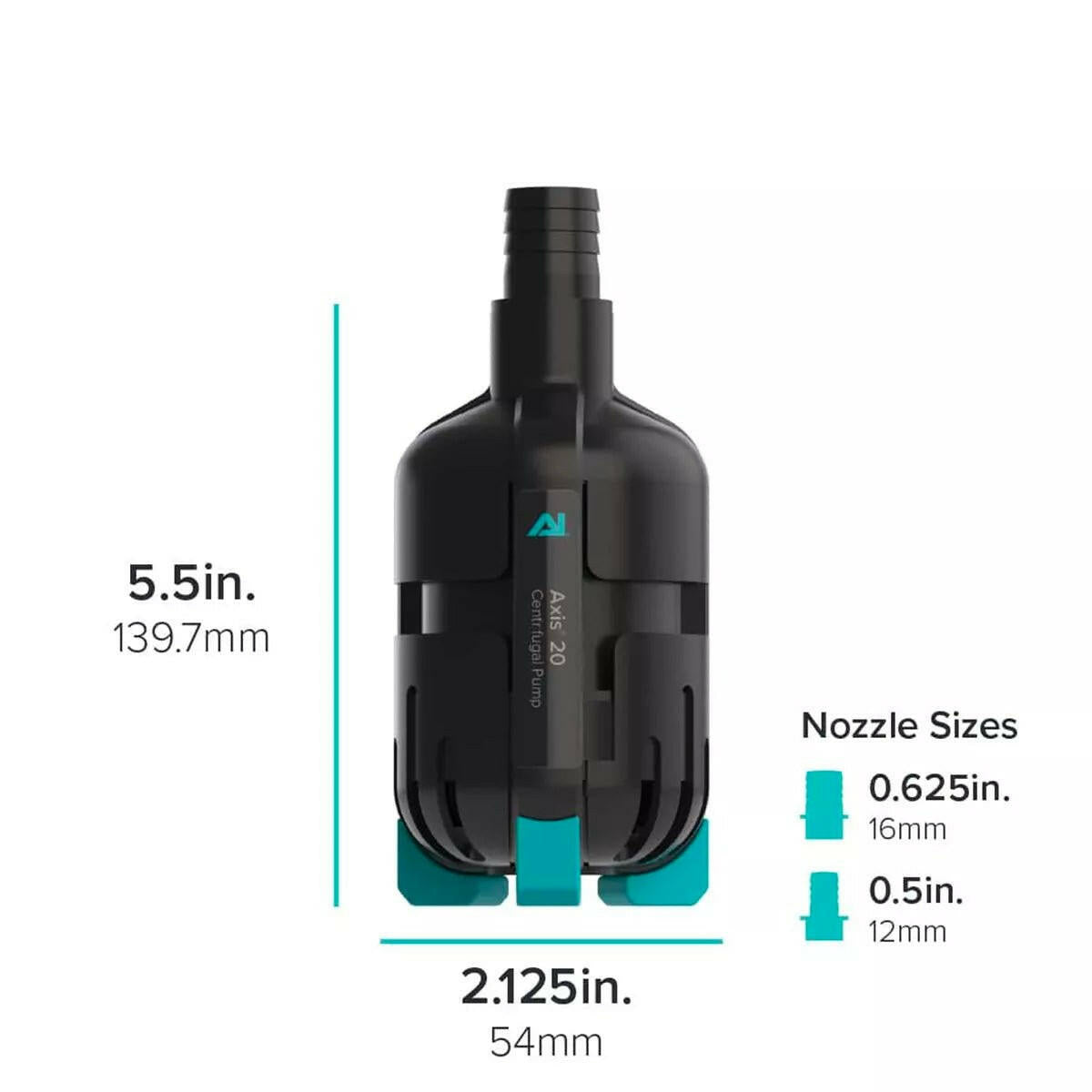

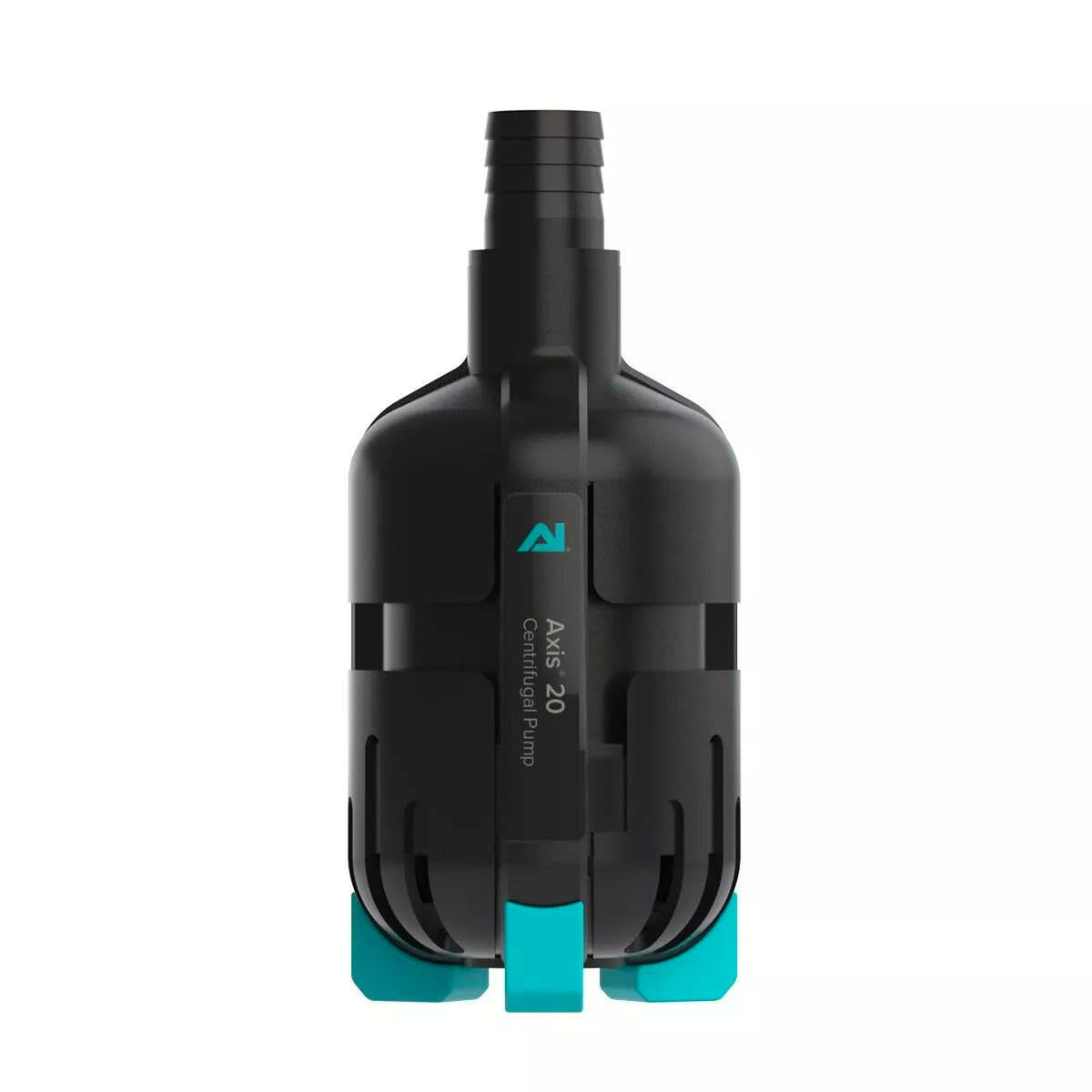

Width 2.125 in. (54 mm)
Height 5.5 in. (139.7 mm)
Max Head ? 5 ft. (?1.5 m)
Flow Rate ? 185 gph (?700 lph)
Recommended Tank SizeUp to ? 15 gallons
Power Consumption Variable, 12W max
Input 100–240VAC, 50-60Hz, 1A
Barbed Output Nozzle Sizes: 0.5" (12mm) | 0.625" (16mm)

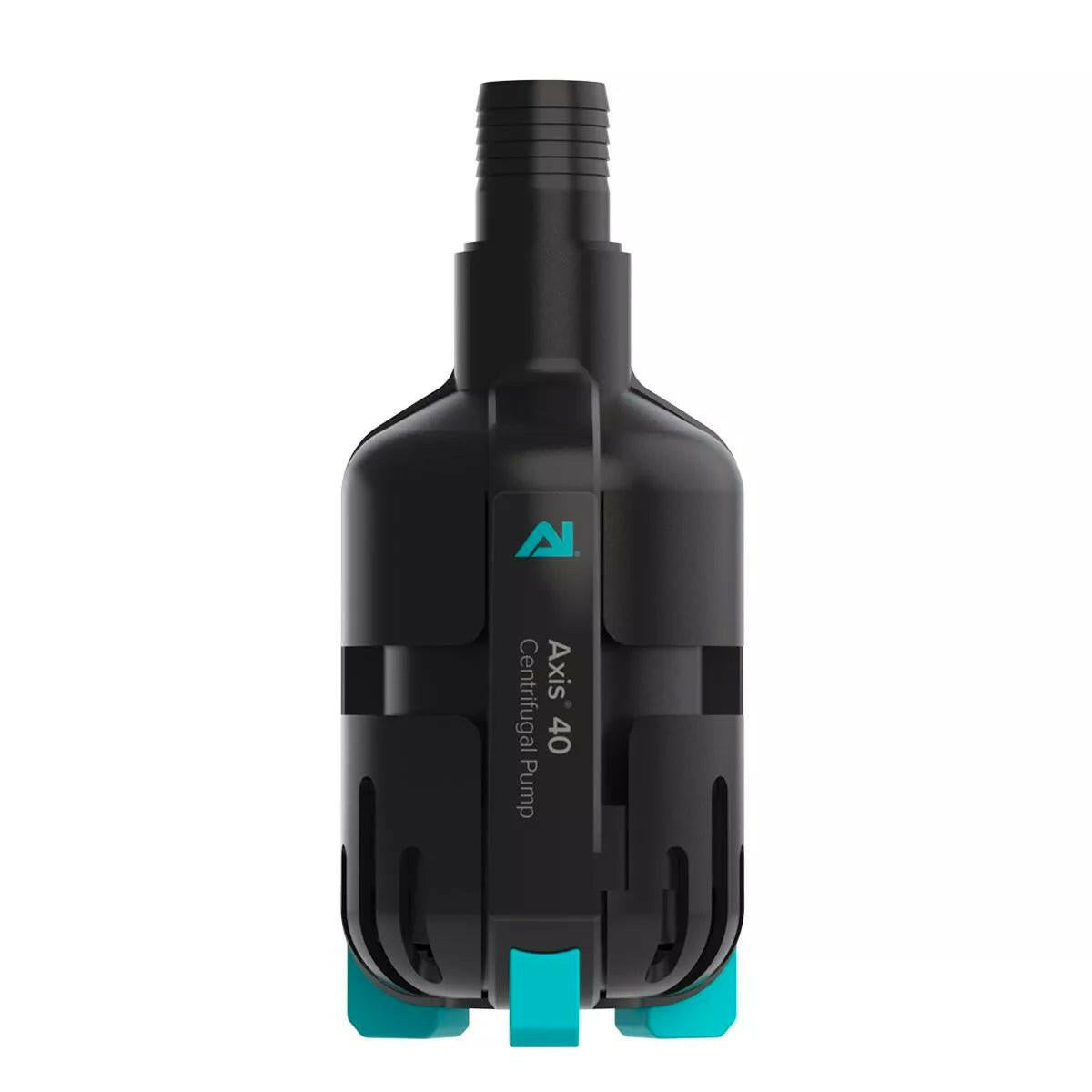

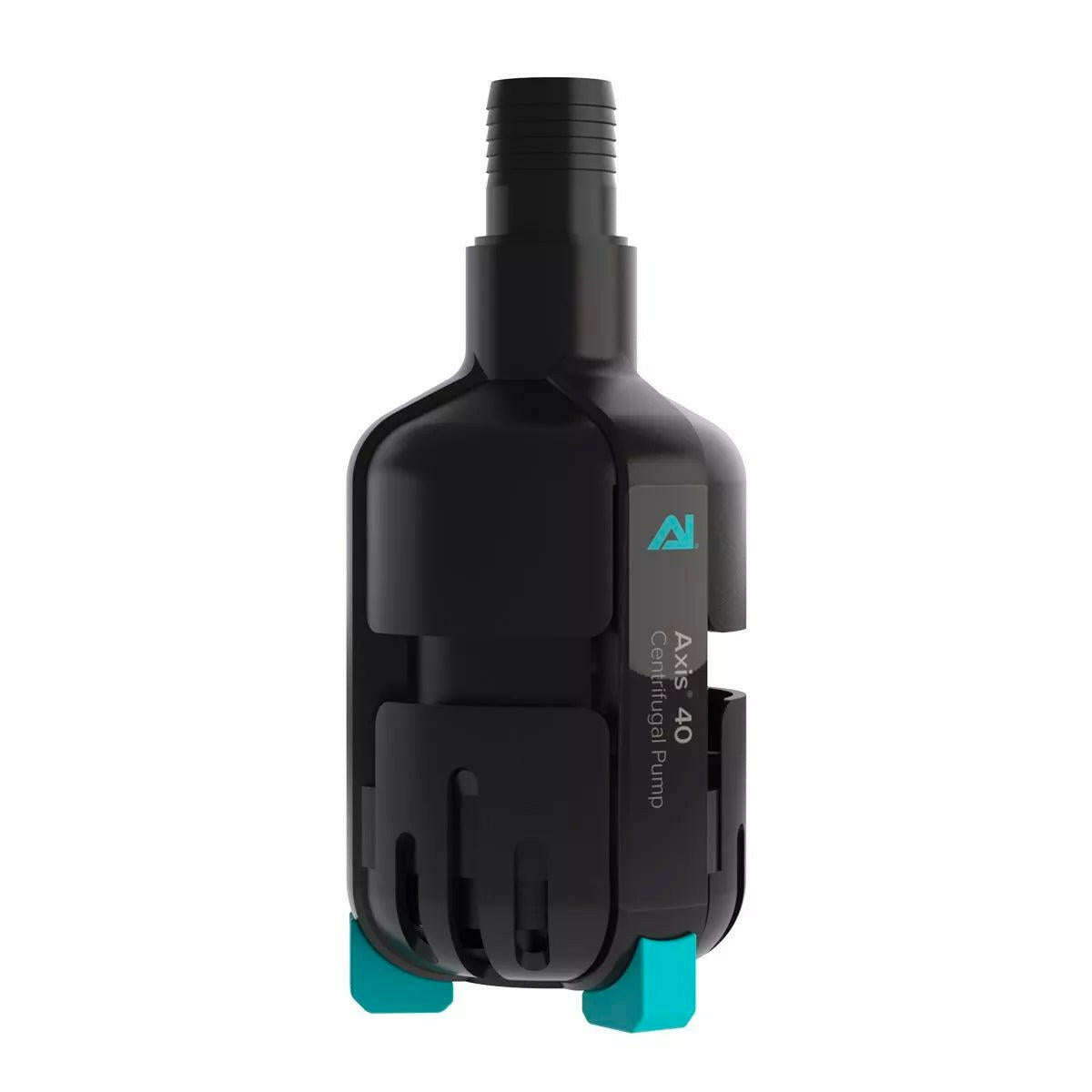

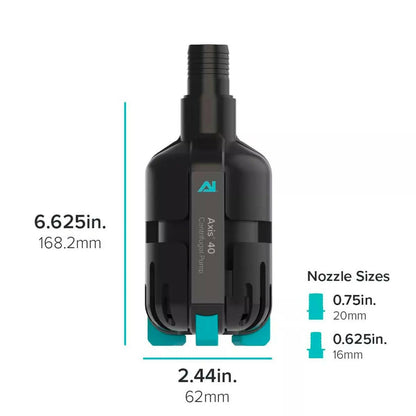

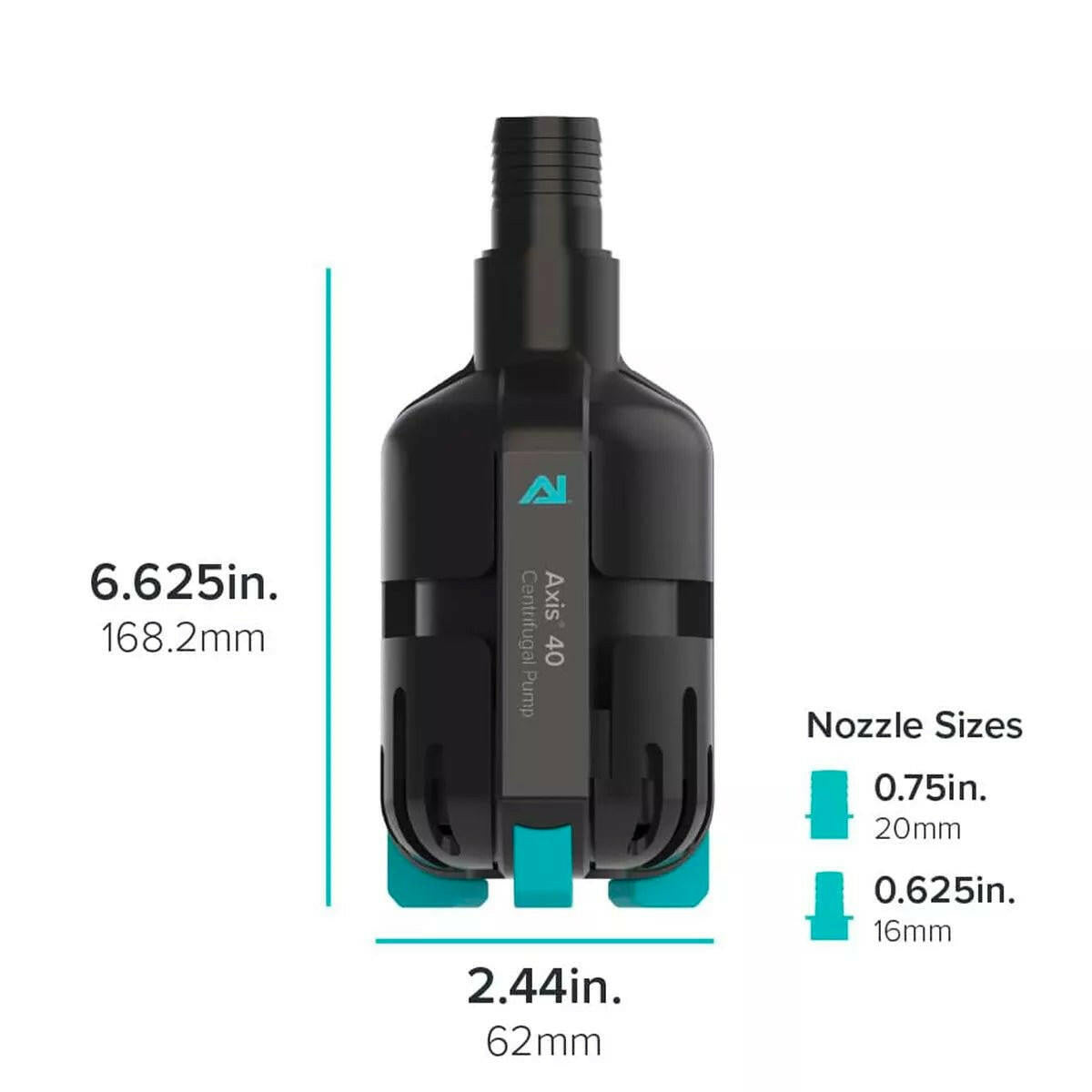

Width 2.44 in. (62 mm)
Height 6.625 in. (168.2 mm)
Max Head 9 ft. (2.8 m)
Flow Rate 400 gph (1500 lph)
Recommended Tank SizeUp to 40 gallons
Power Consumption Variable, 20W max
Input 100–240VAC, 50-60Hz, 1A
Barbed Output Nozzle Sizes: Small: 0.625in. 16mm Large: 0.75in. 20mm

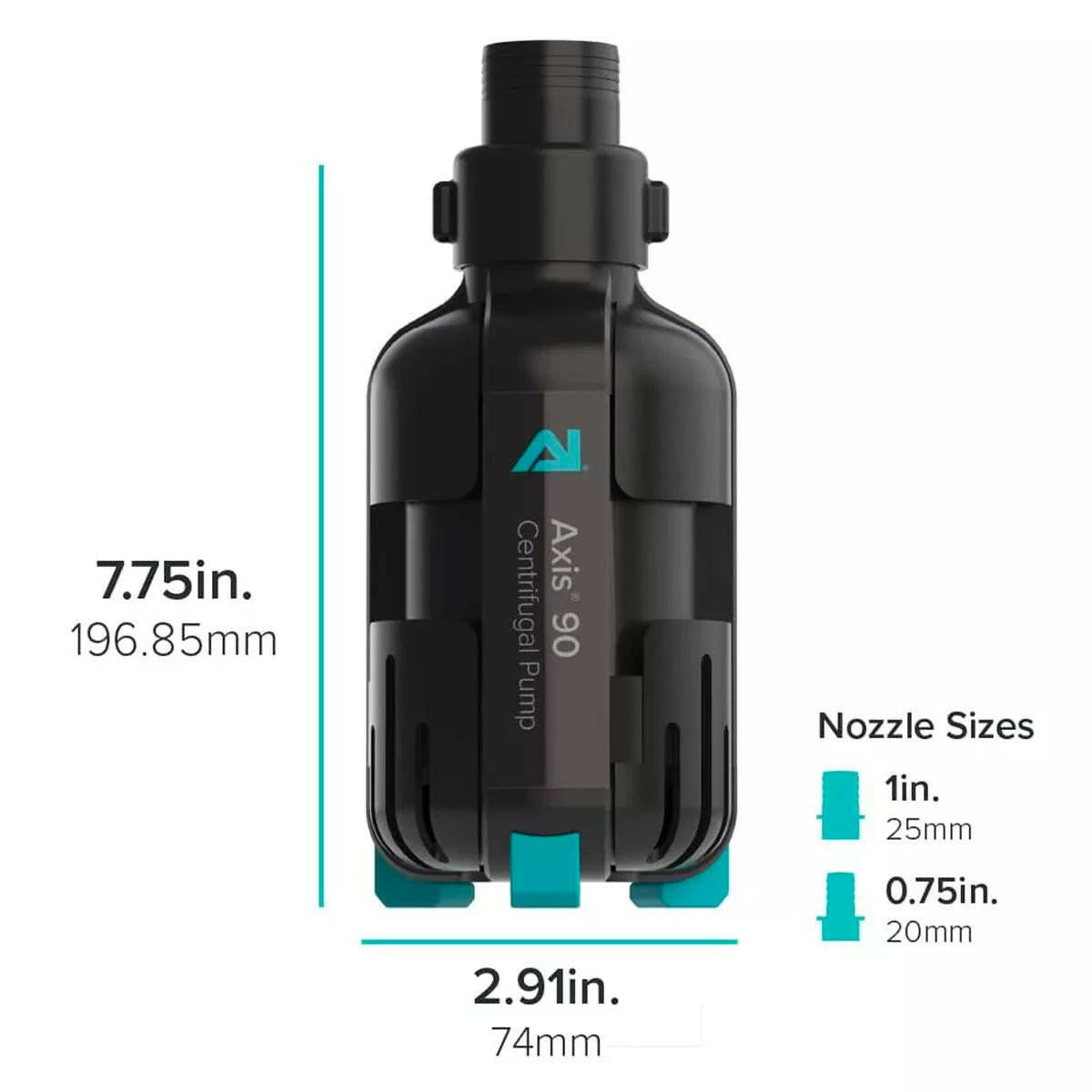

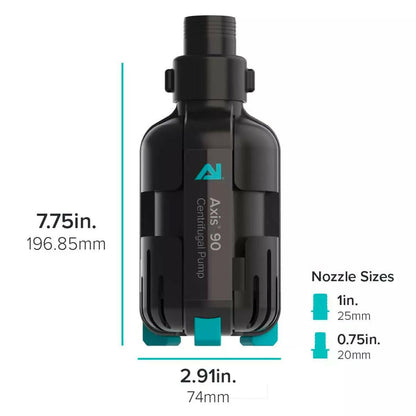

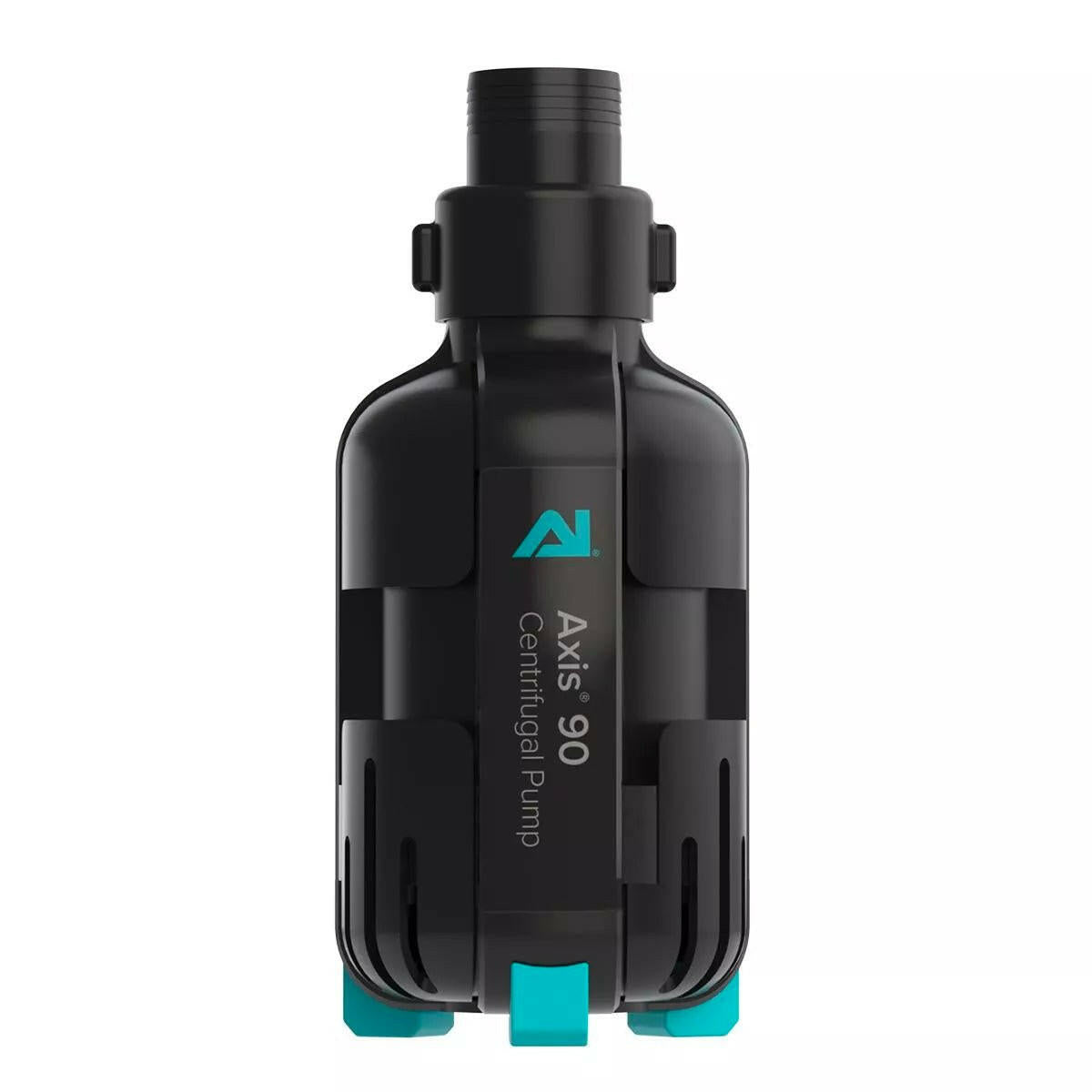

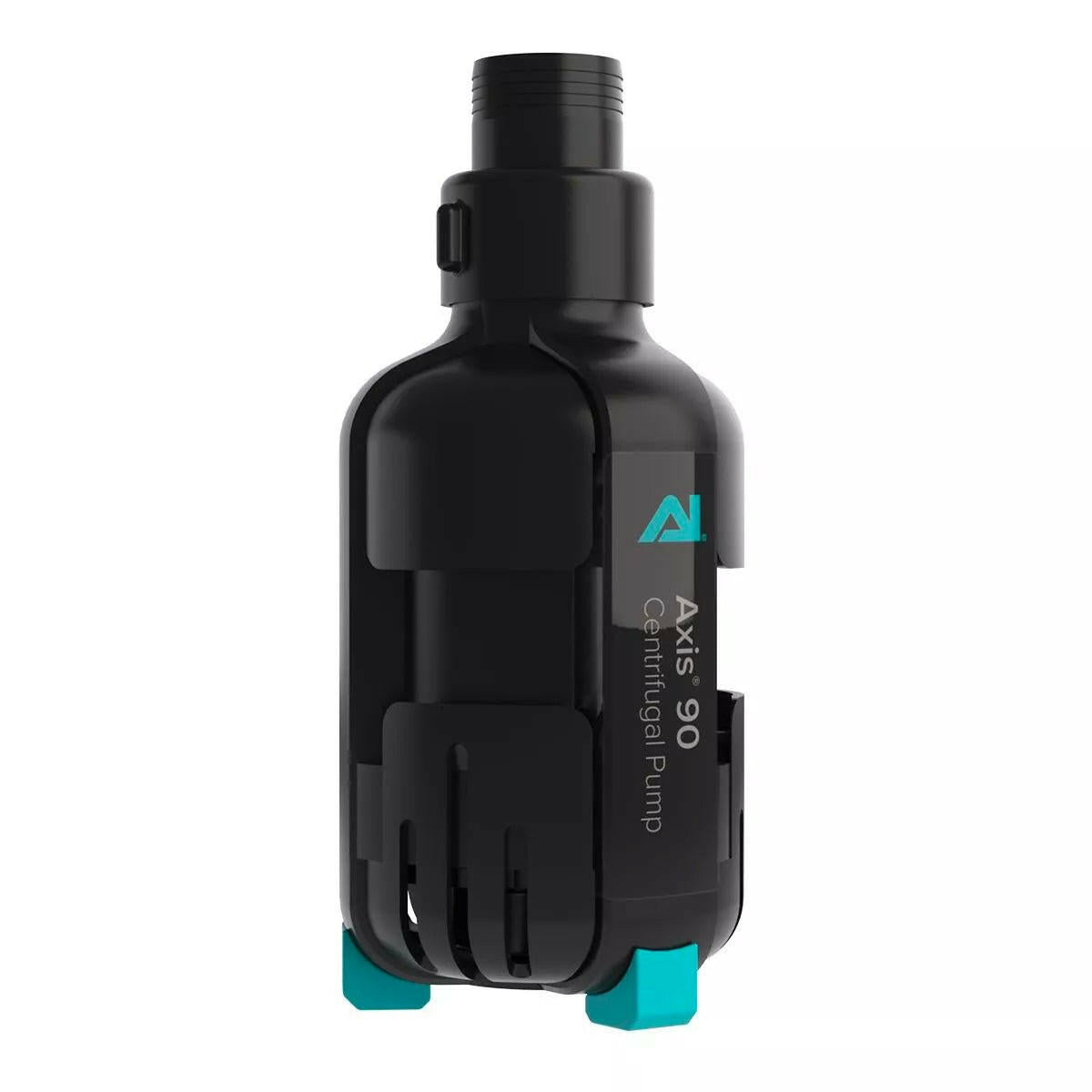

Width 2.91 in. (74 mm)
Height 7.75 in. (196.85 mm)
Max Head 10 ft. (3 m)
Flow Rate 925 gph (3500 lph)
Recommended Tank SizeUp to 90 gallons
Power Consumption Variable, 40W max
Input 100–240VAC, 50-60Hz, 1A
Barbed Output Nozzle Sizes: Small: 0.75in. 20mm Large: 1in. 25mm
