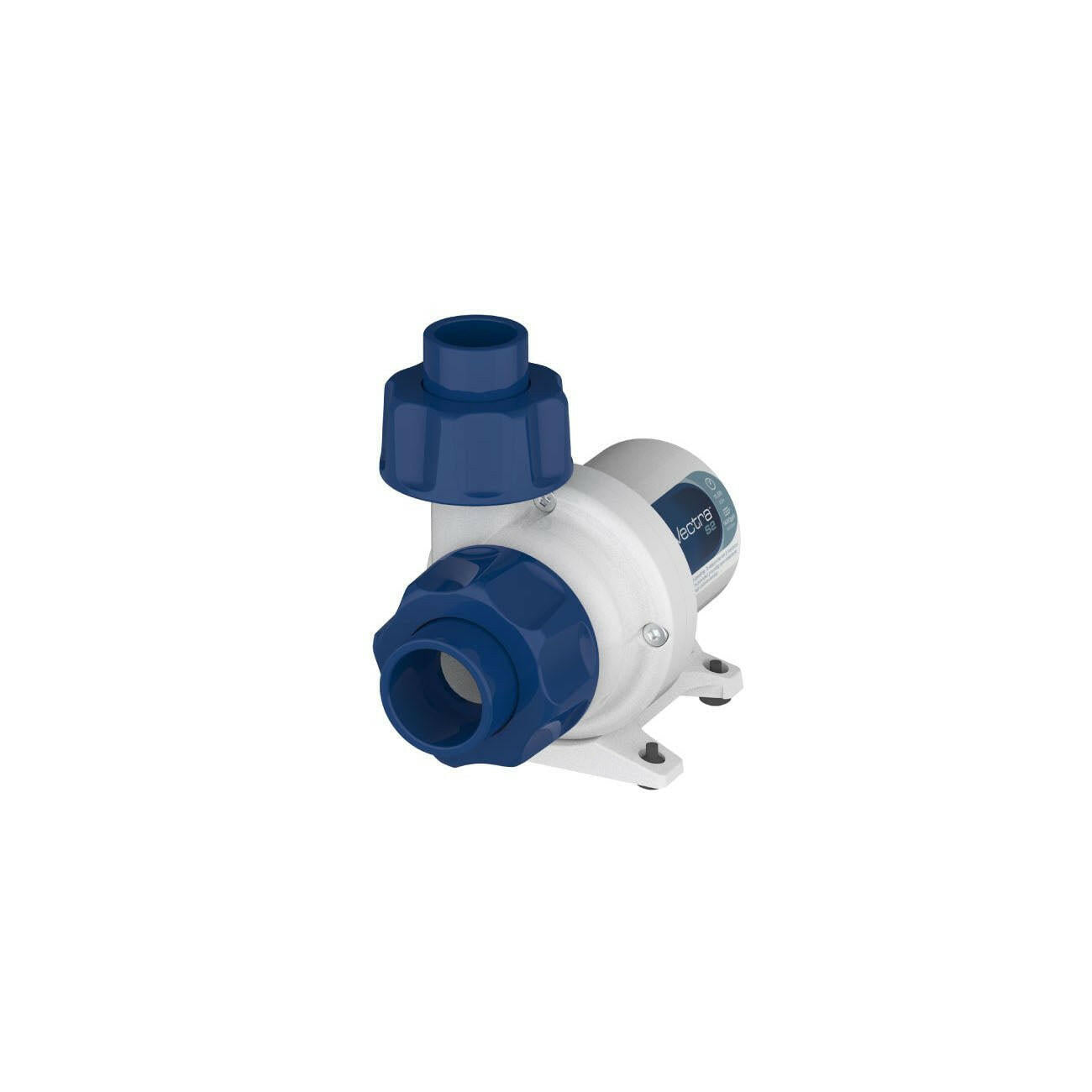

Introducing the World's Smartest Return Pump
With some of the most advanced pump technology on the market, EcoTech has stepped it up another notch. With Mobius app compatibility, Vectra return pumps are more versatile and easier to use than ever, and QuietDrive technology keeps noise to an absolute minimum in almost any application. These pumps can be used as a standard return pump or a closed loop pump, and when used in closed loop you can utilize the same EcoSmart modes that made other EcoTech pumps so outstanding.
- Mobius App Ready - No need for additional equipment to get wireless programming functionality. Connect directly to your iOS or Android device.
- Quiet Drive Technology
- Easy Maintenance with Quick Couplers
- Improved Thermal Management
- Controllable flow up to 3100 GPH
- Closed Loop or Return Pump
- No Compromises and Second to None
The Vectra Advantage — Improved Installation
Included QuickCouple components make installation, cleaning, and adjustments a breeze, and the volute can rotate to adapt to your plumbing setup.
- Easy Connection
- Fast Setup
- Quick Disassembly
- Compatible with Standard PVC
Return Pump or Closed Loop
Install and operate as either a return pump or closed loop flow pump with two distinct operational configurations. Return Pump features calibration and Speed Lock; Closed Loop offers random and pulsing modes.
Inline or Submersible
Sealed motor and magnetic drive allow internal or external operation to fit nearly any setup.
Vectra Driver
The driver features QuietDrive technology and provides configurable modes including Feed Mode, fully adjustable flow, and wireless Mobius communication.
- Choose between Return Pump or Closed Loop configuration
- QD Technology minimizes DC motor noise
- Wireless communication is Mobius App Ready
Battery Backup Compatible — reef tank insurance to help protect your tank inhabitants during power interruptions.
Cost Savings
Unlike traditional AC pumps that waste energy with flow restrictions, these DC-driven pumps run at optimum efficiency without choke valves.
What's Included?
- 1x Vectra DC Pump
- 1x Vectra QuietDrive Driver
- Driver Mounting Bracket
- Power Supply
- Input & Output Quick Couplers
- Instructional Manual

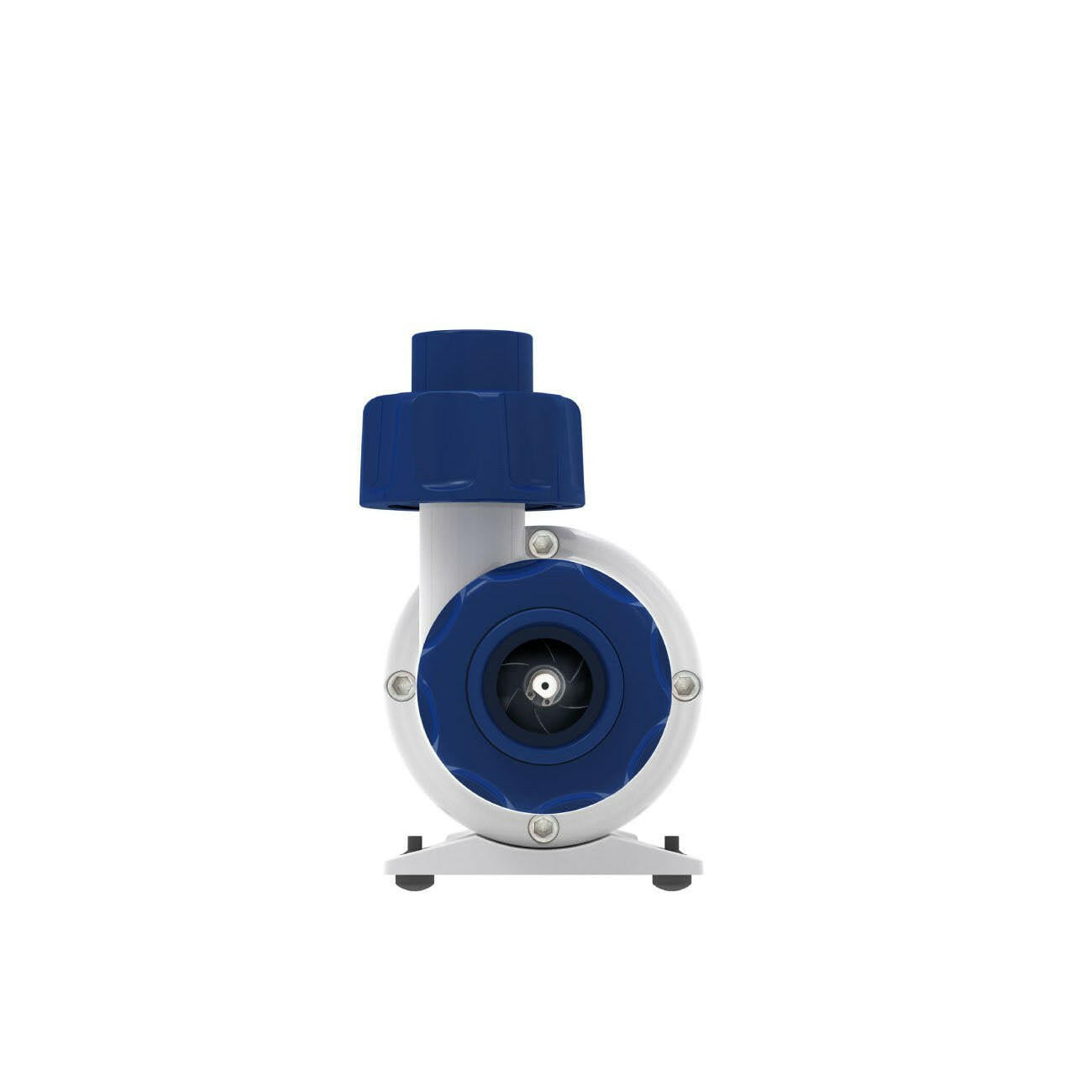

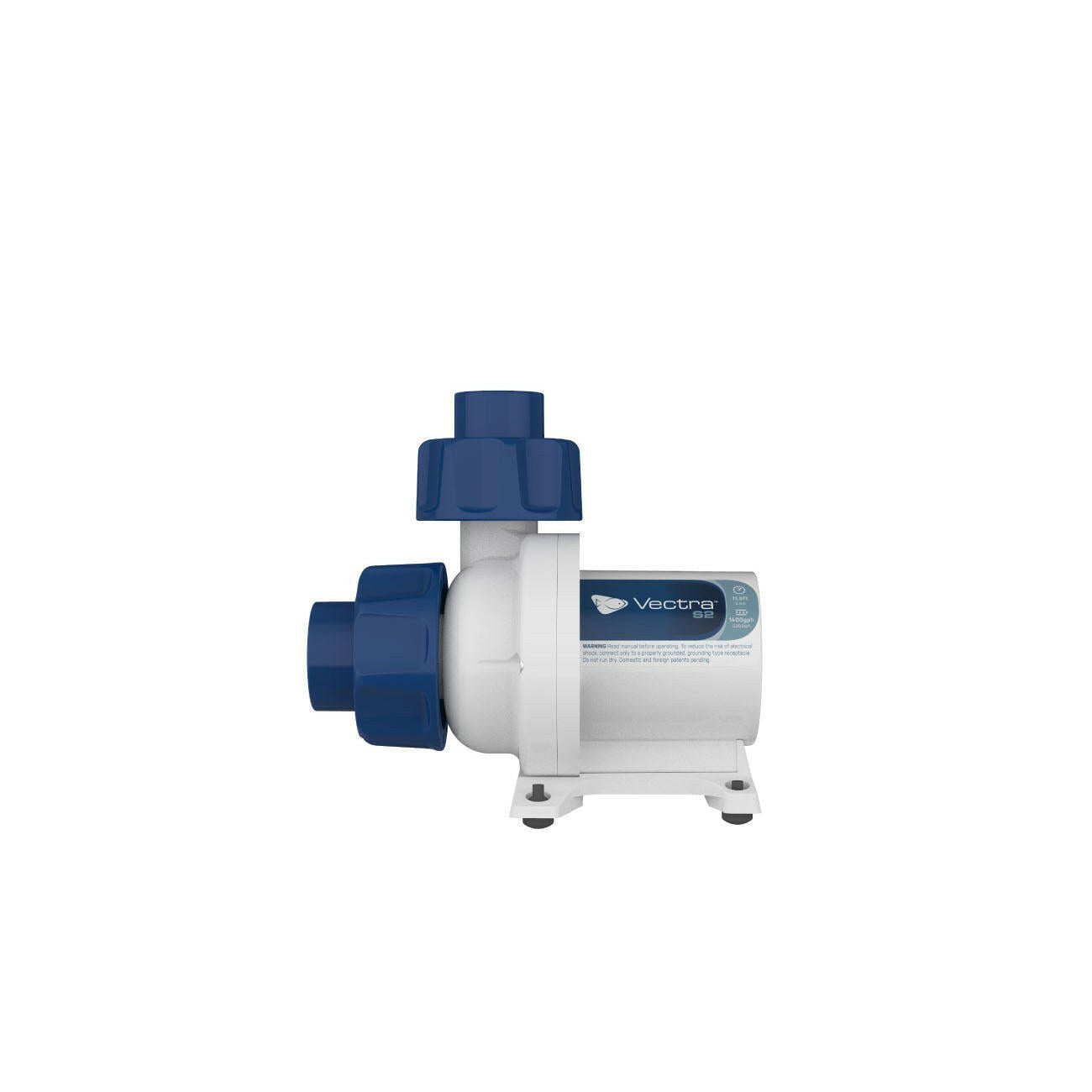

S2 Specifications
- Max Flow: 1400 GPH (5,300 lph)
- Max Head Height: 11.5 Feet
- Footprint: 3.8" L x 6.5" W
- Input Fitting*: 1" (25mm)
- Output Fitting*: 0.75" (19mm)
- Power Supply: 72W
*Input and output fitting are compatible with standard PVC pipe.

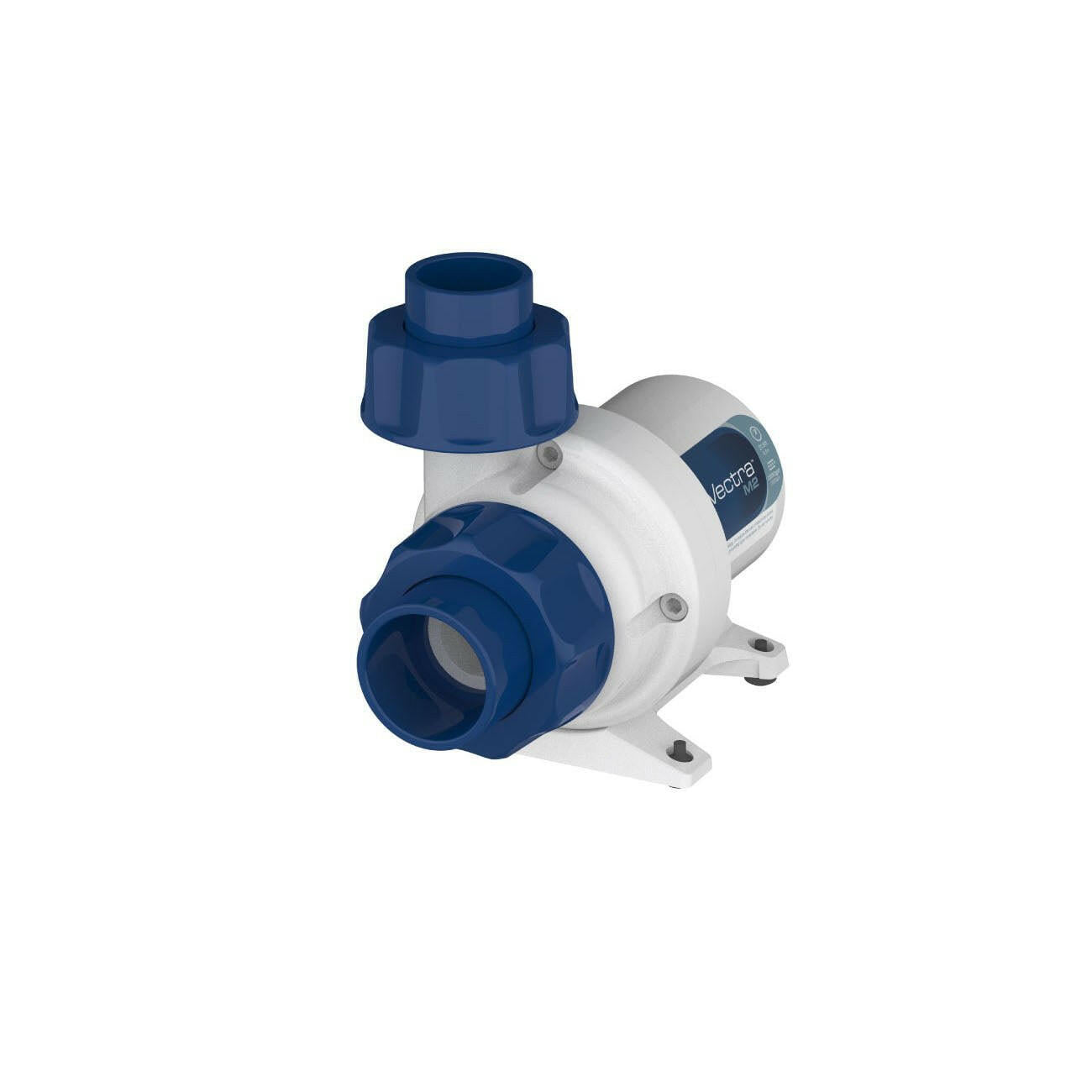

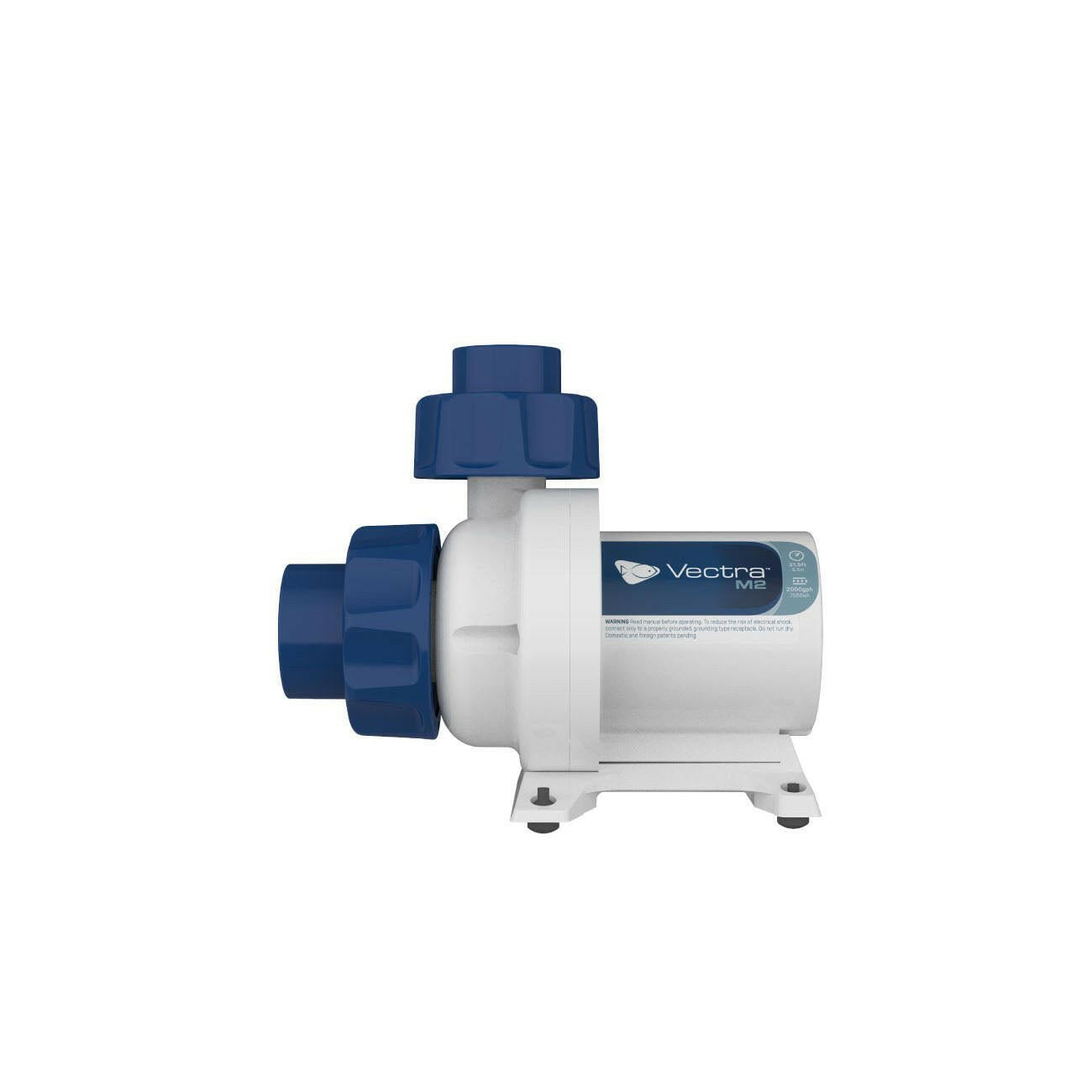

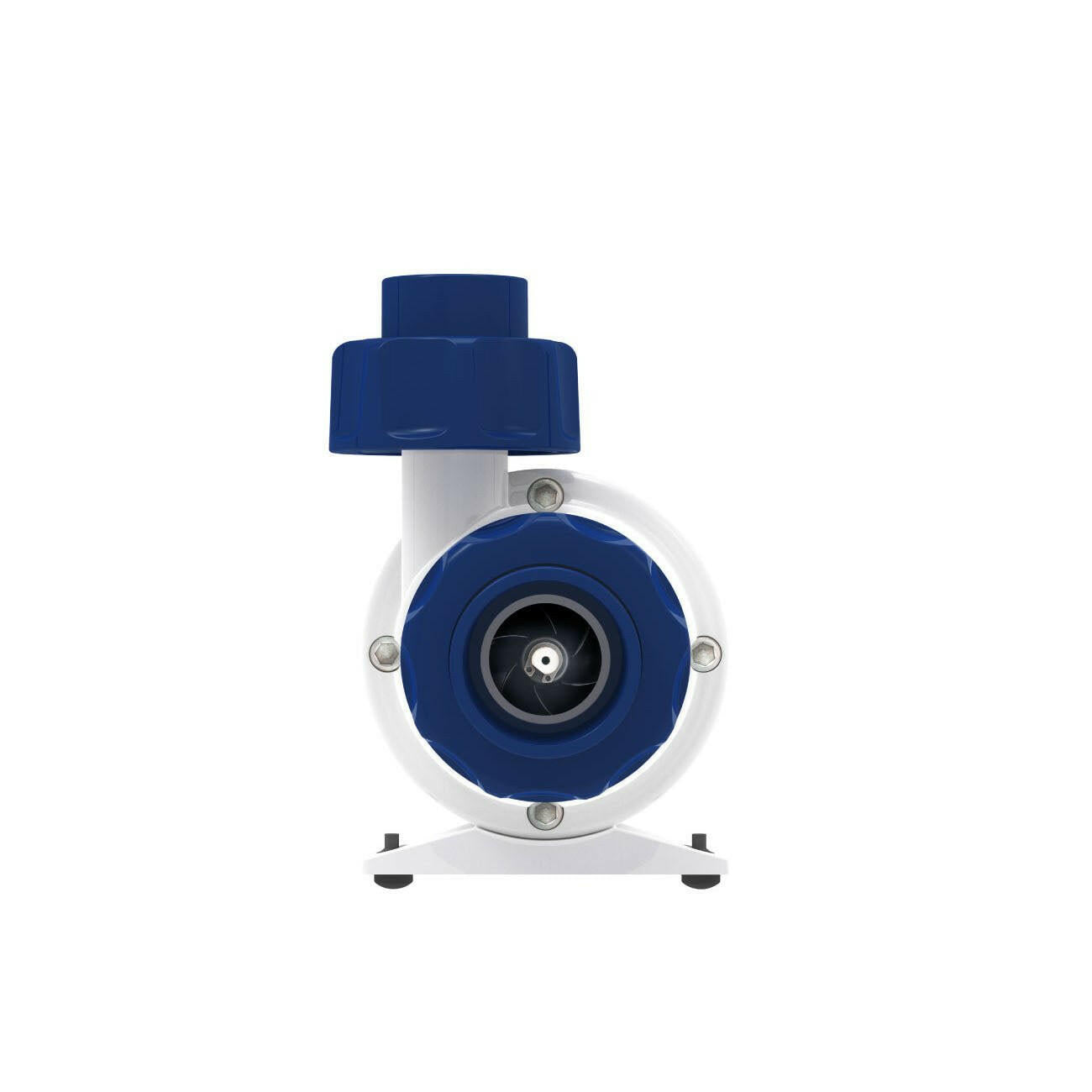

M2 Specifications
- Max Flow: 2000 GPH (7,500 lph)
- Max Head Height: 21.5 Feet
- Footprint: 4.5" L x 7.5" W
- Input Fitting*: 1.25" (31.75mm)
- Output Fitting*: 1" (25mm)
- Power Supply: 96W
*Input and output fitting are compatible with standard PVC pipe.

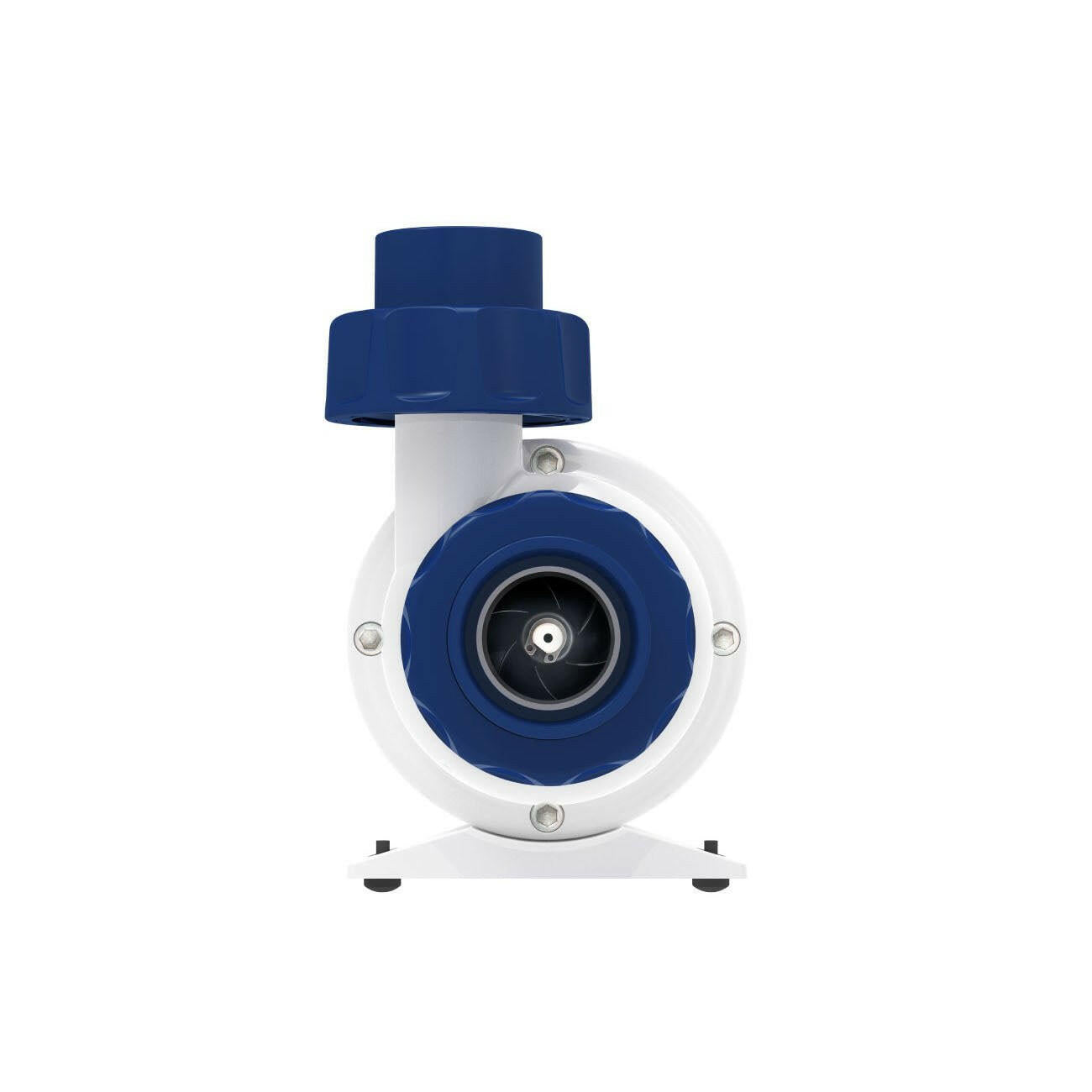

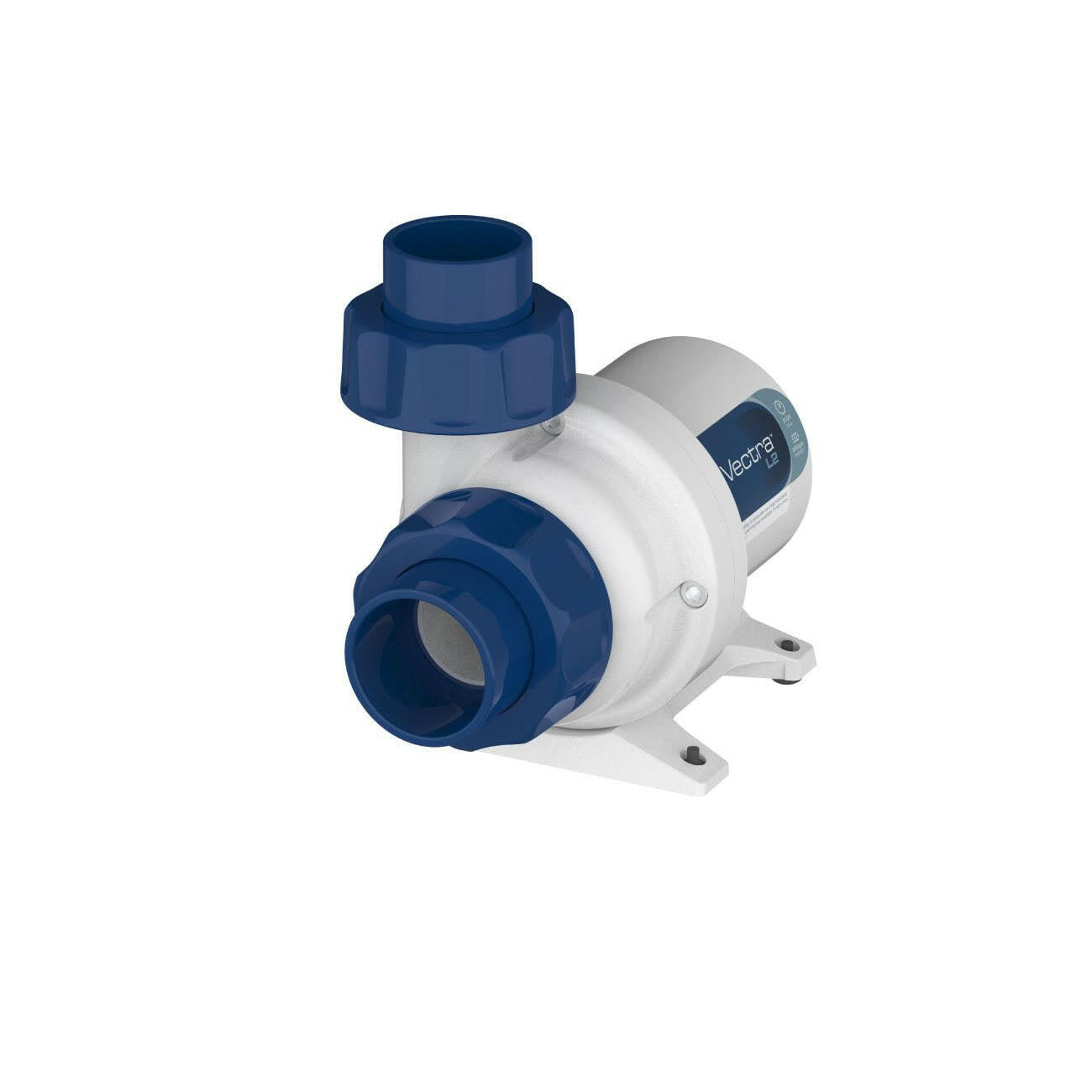

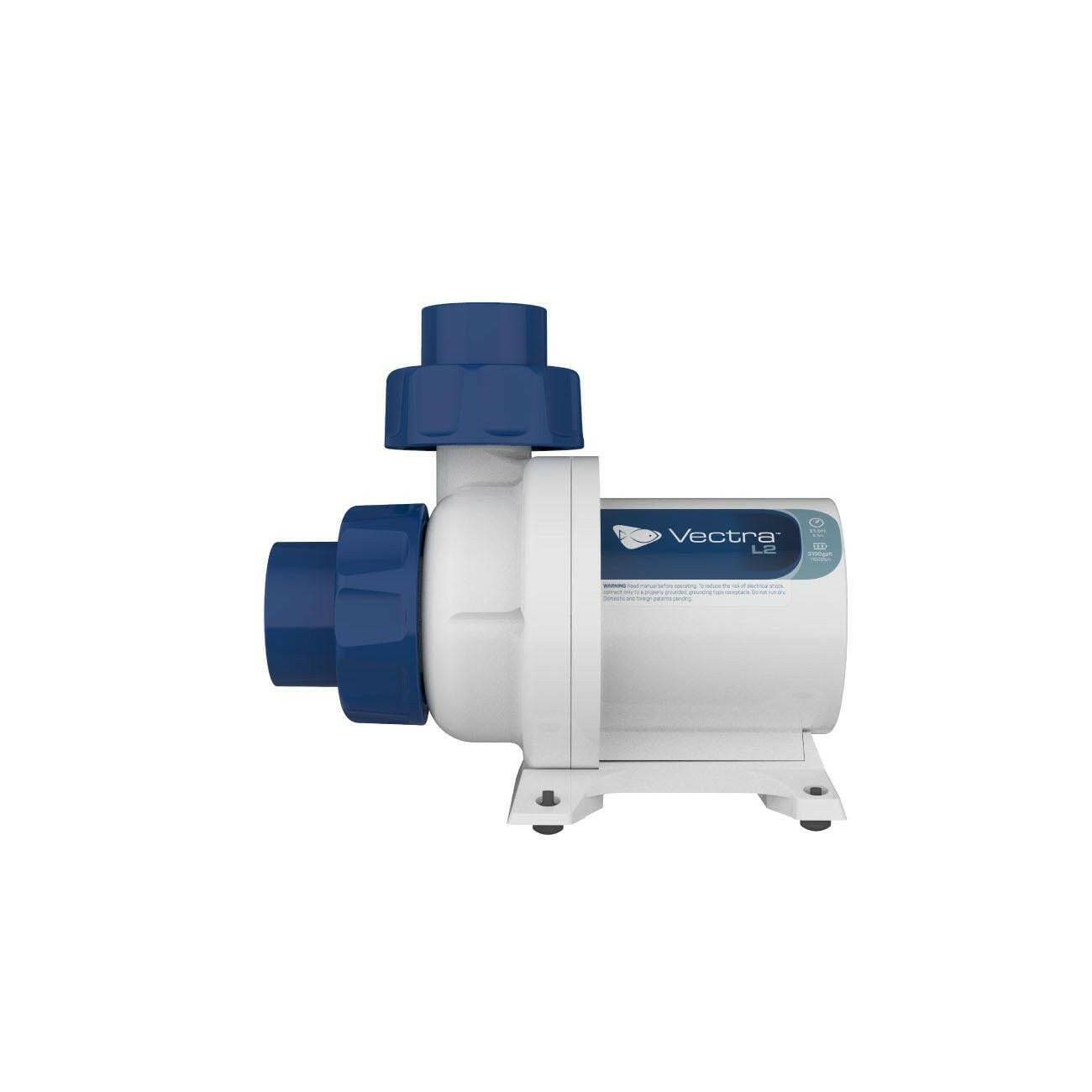

L2 Specifications
- Max Flow: 3100 GPH (11,500 lph)
- Max Head Height: 21.5 Feet
- Footprint: 5 in. x 8.5 in. (126.8mm x 215.15mm)
- Input Fitting*: 1.5" (38mm)
- Output Fitting*: 1.25" (31.75mm)
- Power Supply: 150W
*Input and output fitting are compatible with standard PVC pipe.
