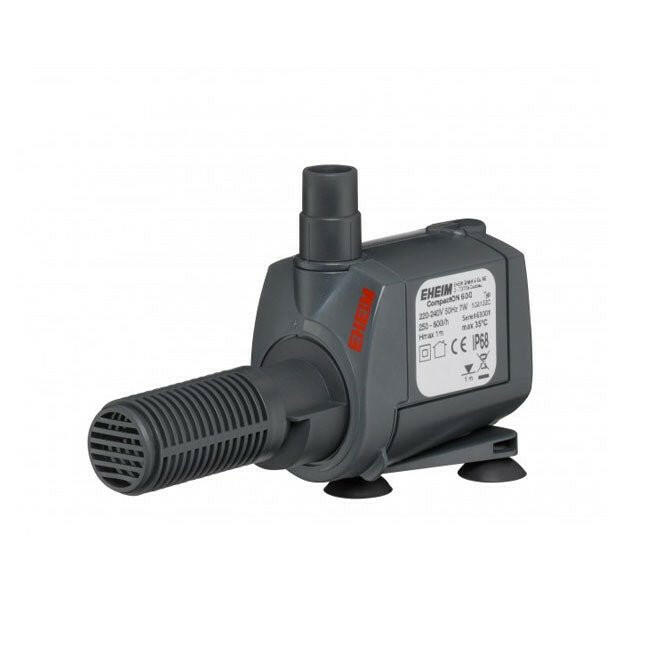

Compact and yet powerful aquarium pump series designed for versatile use in both freshwater and marine setups.
Silent operation and high pump output at low power consumption make these pumps ideal for circulation, return and filter-basin applications. A compact design and included accessory bag allow flexible installation; some units can also be modified for use outside the water.
Flow rates cover a wide range, from small circulation needs up to very high-output applications, with adjustable flow on most models for precise control (highest-output units are fixed-flow). Compared to earlier compact pumps, power consumption is improved by up to 50%, delivering efficient performance without sacrificing head or reliability.
Long service life and quiet running are achieved through careful engineering — for example, ceramic shaft and ceramic-cover combinations in the rotor assembly — while thicker cable insulation and water-safe materials protect aquarium inhabitants.
Advantages
- Compact, powerful performance with low energy use
- Silent operation and long service life
- Versatile mounting with robust suction cups

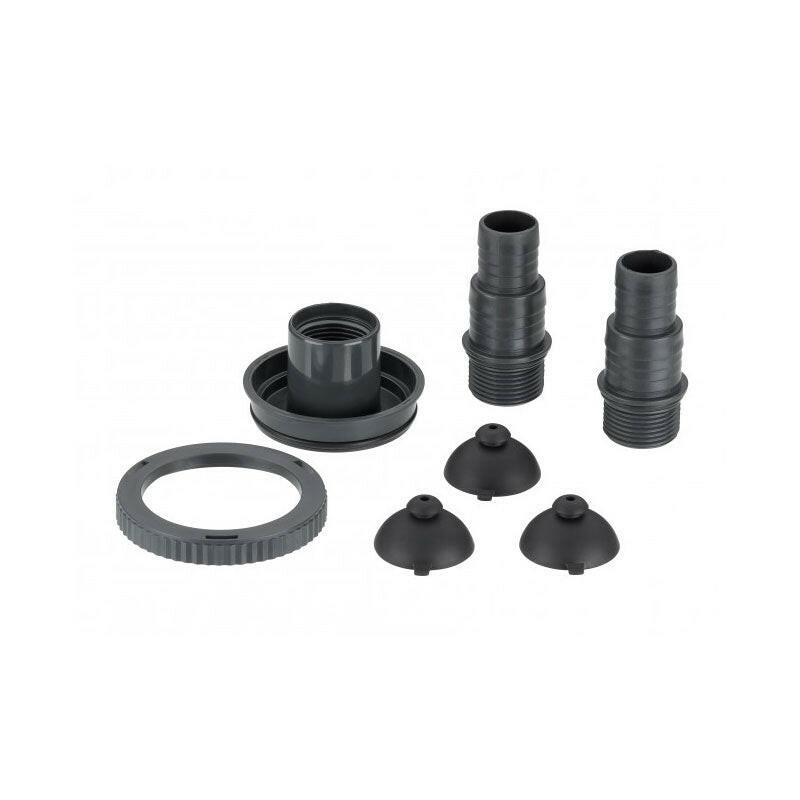

- Includes practical accessories such as suction basket and threaded coupling
- Suitable for freshwater and marine environments
Manufacturer guarantee: 3 Year(s)
Pump output: 170-300 l/h, adjustable
power consumption: 230 V/50 Hz, 7 W
pump head: 0.60 m
cable length: 2.0 m
Dimensions: 62x38x72 mm (length x width x height)
hose connection pressure side: 12/16 mm
operation insde the aquarium or filter sump
for fresh and marine water use

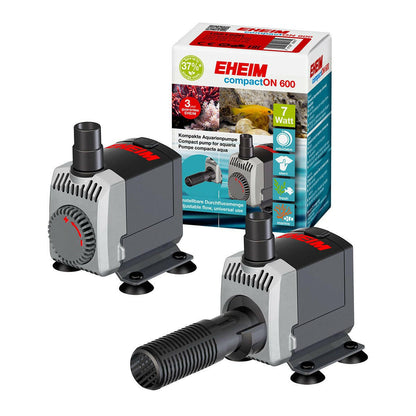

Pump output: 250-600 l/h, adjustable
power consumption: 230 V/50 Hz, 7 W
pump head: 1.0 m
cable length: 2.0 m
Dimensions: 62x38x72 mm (length x width x height)
hose connection pressure side: 12/16 mm
operation insde the aquarium or filter sump
for fresh and marine water use

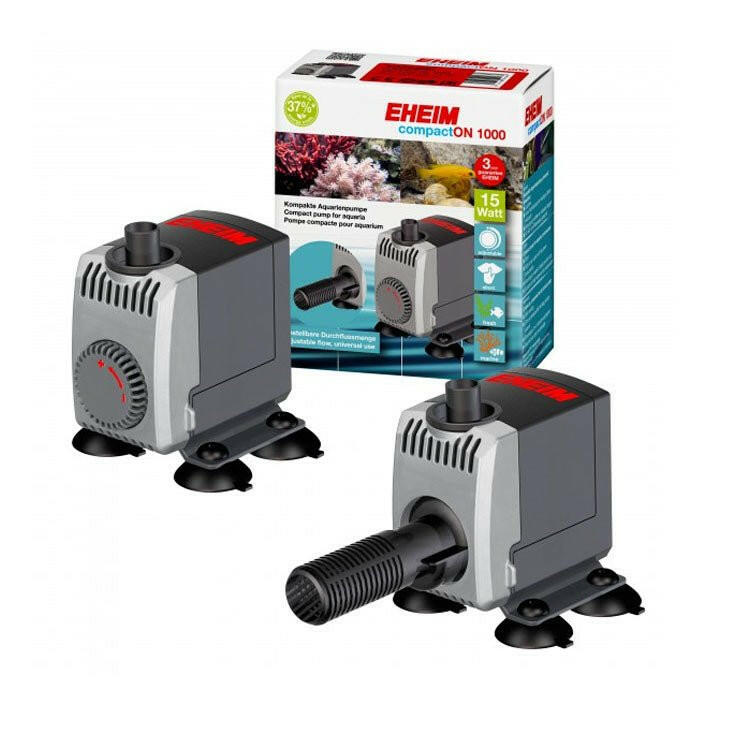

Pump output: 400-1000 l/h, adjustable
power consumption: 230 V/50 Hz, 15 W
pump head: 1.40 m
cable length: 2.0 m
Dimensions: 73x47x79 mm (length x width x height)
hose connection pressure side: 12/16 mm
operation inside the aquarium or filter sump
for fresh and marine water use

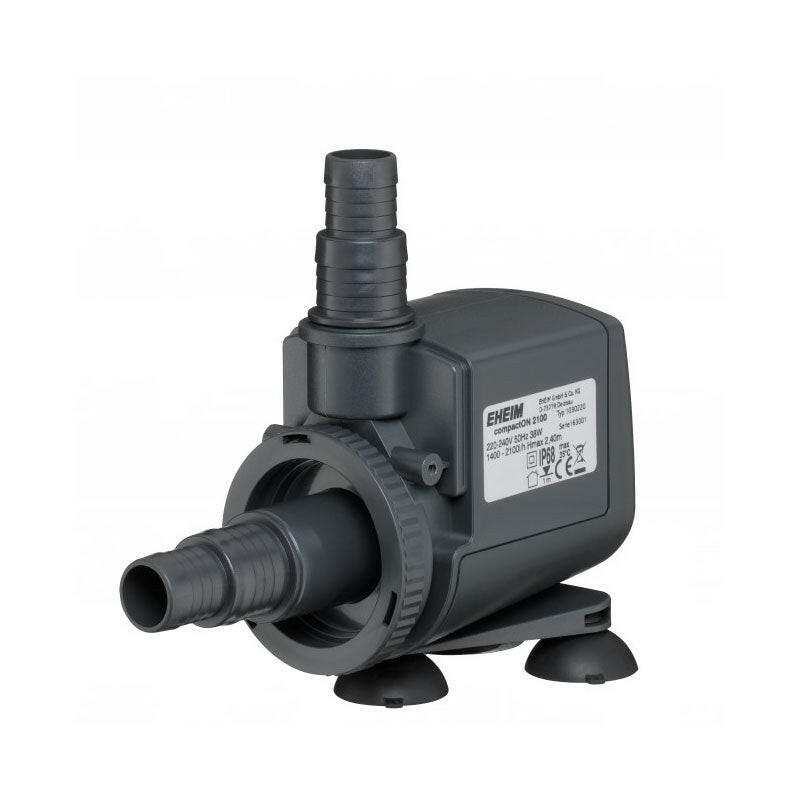

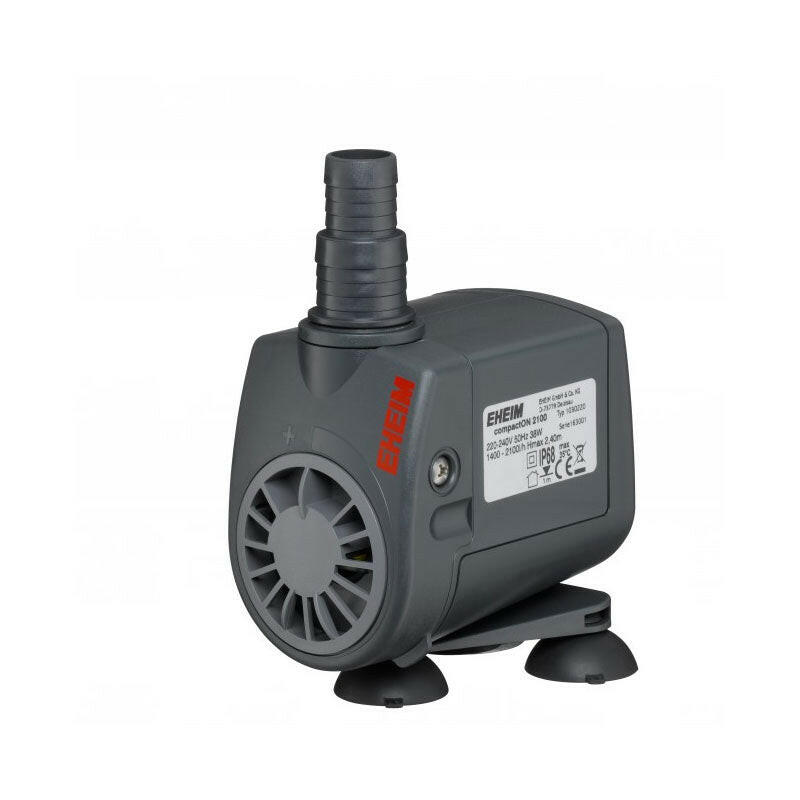

Pump output: 1400-2100 l/h, adjustable
power consumption: 230 V/50 Hz, 38 W
pump head: 2.40 m
cable length: 2.0 m
Dimensions: 109x70x142 mm (length x width x height)
hose connection pressure side: 19/27 mm
hose connection suction side: 19/27 mm
operation inside or outside the aquarium or filter sump
for fresh and marine water use

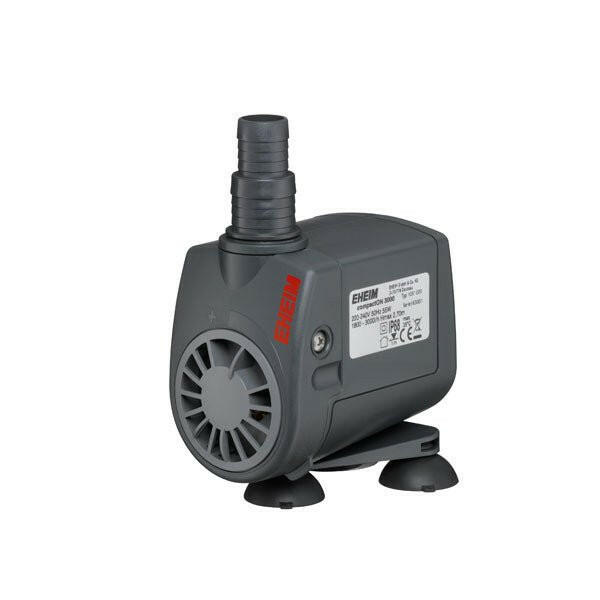

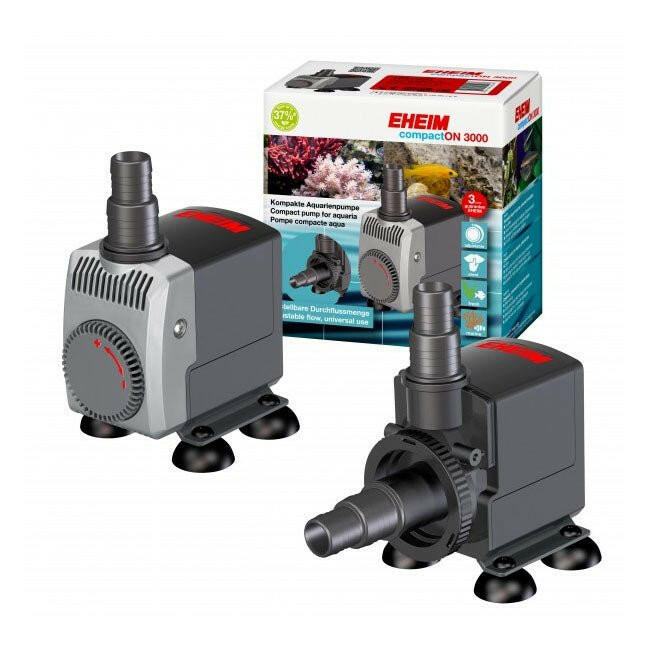

Pump output: 1800-3000 l/h, adjustable
power consumption: 230 V/50 Hz, 55 W
pump head: 2.70 m
cable length: 2.0 m
Dimensions: 109x70x142 mm (length x width x height)
hose connection pressure side: 19/27 mm
hose connection suction side: 19/27 mm
operation inside or outside the aquarium or filter sump
for fresh and marine water use
EHEIM compactON 5000
Pump output: 5000 l/h
power consumption: 230 V/50 Hz, 70 W
pump head: 3.60 m
cable length: 2.0 m
Dimensions: 142x92x154 mm (length x width x height)
hose connection pressure side: 25/34 mm
hose connection suction side: 25/34 mm
operation inside or outside the aquarium or filter sump
for fresh and marine water use
