The new Jecod ADP Model AP & Wi-Fi Submersible Aquarium Return Pumps
Optional Wi-Fi connectivity – the 'Jebao Aqua' app is available to download from the Apple App Store or Google Play, or you can scan the QR code from the user manual supplied with the pump.
Designed with innovative 2023 Sine Wave Technology for ultra-quiet operation in any marine or freshwater aquarium, this return pump range combines silent performance with smart control and efficiency.
Comes complete with a smart AP controller offering app-controlled speed settings between 30% and 100%. The controller also features a 'Feed' mode so you can pause or delay the pump for stress-free feeding.
Advanced electronic motors reduce power consumption by up to 65%, and built-in IC electronic detection provides automatic power-off protection when water levels drop too low.
Features:
• Smart Wi-Fi Control Function
• Smart AP Mode Control Function (No Router Required)
• Sine Wave Technology (Ultra Quiet Operation)
• Suitable for Marine and Fresh Water Aquariums, rust free
• Digital AP (Access Point) Wi-Fi Speed Controller for adjustable flow rate 30% to 100%
• 'Feed' Mode to stop pump for a preset time
• Wear Resistant Ceramic Shaft for longer operation life
• Seals for input and output connections
• Improved head pressure performance over previous models
• New Closed Impellor Design for Quiet Operation
• Automatic power off protection when water levels drop too low
• IC Electronic Detection and motor protection if rotor is blocked
• Electronic motor design reduces power consumption by up to 65% (no copper elements)
• Suitable for submerged or non-submerged applications
• Waterproof Standard: IPX8
Reliable, energy-efficient and app-ready, this return pump range is engineered for hobbyists who want quiet, controllable flow and robust protection for both marine and freshwater systems.

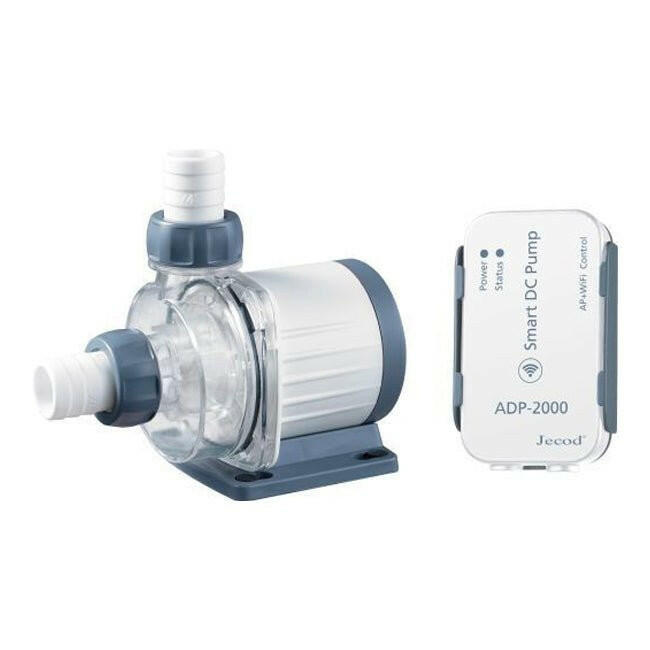

ADP-2000 Pump:
• Maximum output: 2000 litres per hour
• Minimum Output: 600 litres per hour
• Maximum head height: 2.5 metres
• Watts: 20w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 130mm Long (with cage fitted) x 65mm Wide x 85mm High (Without Hose Tails)
• Inlet. Plastic Cage fitted to a 3/4" BSP male thread
• Outlet. 16mm & 20mm Hose Tails fitted to a to a 3/4" BSP male thread

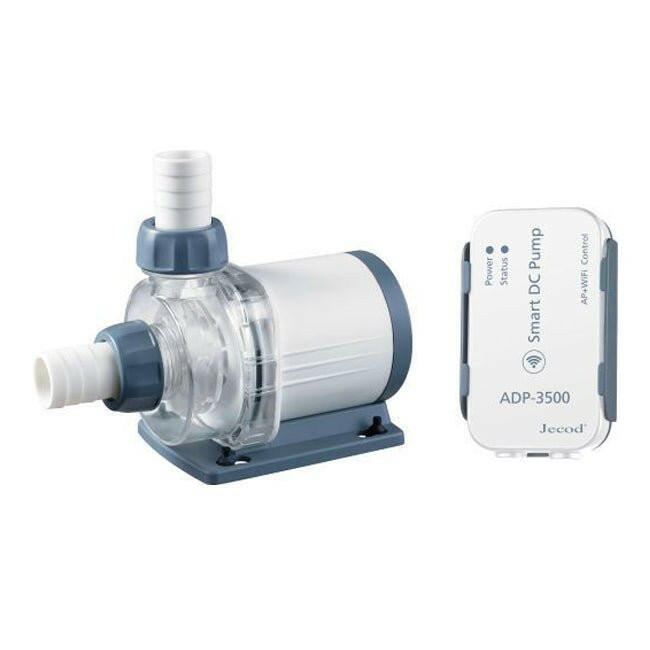

ADP-3500 Pump:
• Maximum output: 3500 litres per hour
• Minimum Output: 1050 litres per hour
• Maximum head height: 3.5 metres
• Watts: 28w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 165mm Long (with cage fitted) x 80mm Wide x 105mm High (Without Hose Tails)
• Inlet. Plastic Cage fitted to a 1" BSP male thread
• Outlet. 20mm & 25mm Hose Tails fitted to a to a 1" BSP male thread

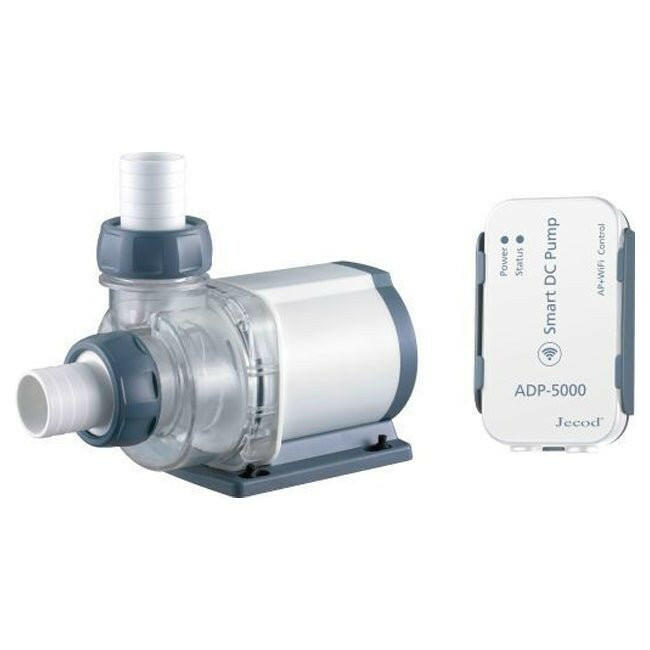

ADP-5000 Pump:
• Maximum output: 5500 litres per hour
• Minimum Output: 1650 litres per hour
• Maximum head height: 4.0 metres
• Watts: 40w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (Without Hose Tails)
• Inlet. Plastic Cage fitted to an 1" BSP male thread
• Outlet. 20mm, 25mm, 32mm & 40mm Hose Tails fitted to a to an 1" BSP male thread

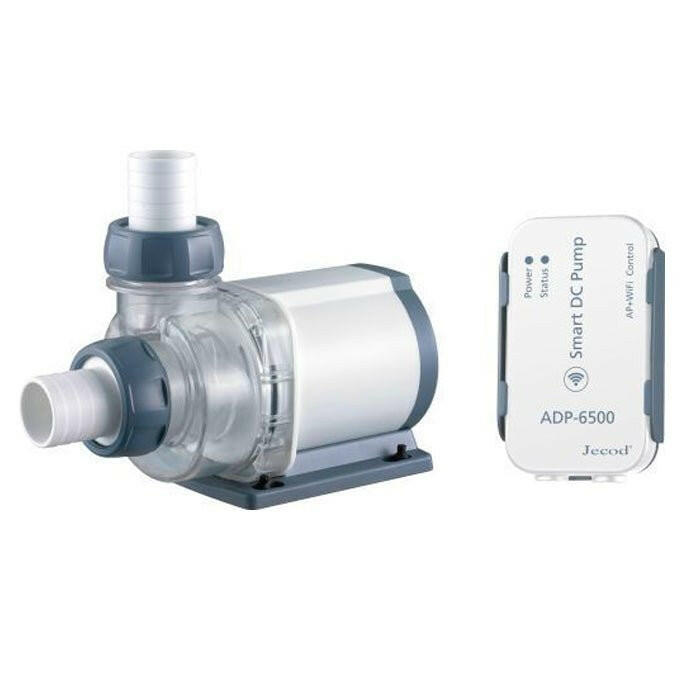

ADP-6500 Pump:
• Maximum output: 6500 litres per hour
• Minimum Output: 1950 litres per hour
• Maximum head height: 4.5 metres
• Watts: 48w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (Without Hose Tails)
• Inlet. Plastic Cage fitted to an 1" BSP male thread
• Outlet. 20mm, 25mm, 32mm & 40mm Hose Tails fitted to a to an 1" BSP male thread

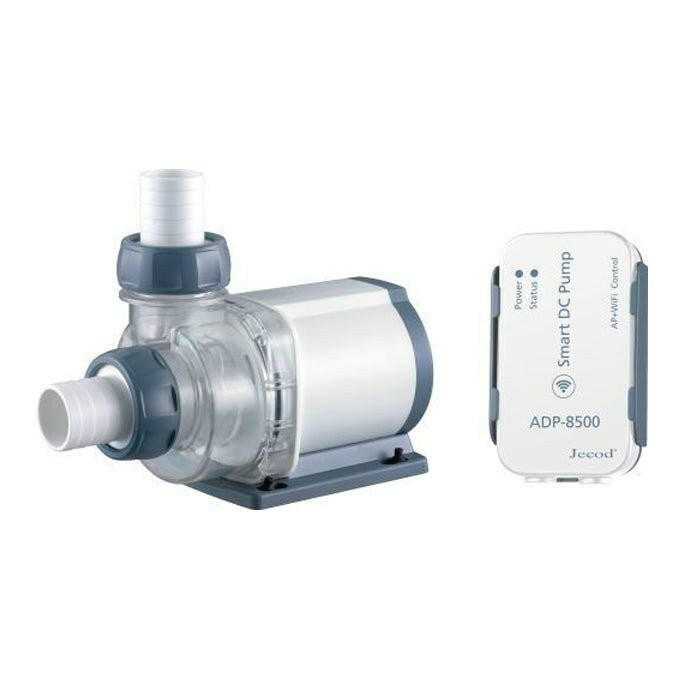

ADP-8500 Pump:
• Maximum output: 8500 litres per hour
• Minimum Output: 1650 litres per hour
• Maximum head height: 4.0 metres
• Watts: 40w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (Without Hose Tails)
• Inlet. Plastic Cage fitted to an 1" BSP male thread
• Outlet. 20mm, 25mm, 32mm & 40mm Hose Tails fitted to a to an 1" BSP male thread

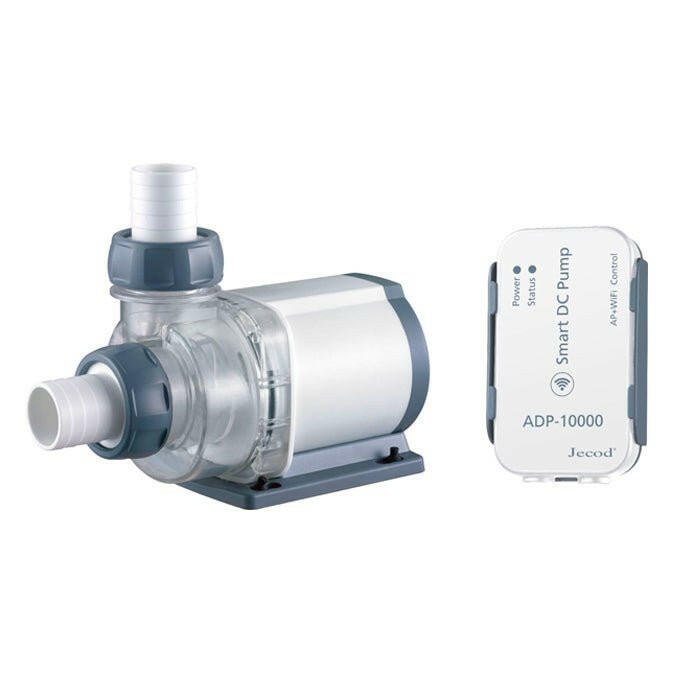

ADP-10000 Pump:
• Maximum output: 10000 litres per hour
• Minimum Output: 3000 litres per hour
• Maximum head height: 6.0 metres
• Watts: 80w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (Without Hose Tails)
• Inlet. Plastic Cage fitted to an 1 1/2" BSP male thread
• Outlet. 20mm, 25mm, 32mm & 40mm Hose Tails fitted to a to an 1 1/2" BSP male thread

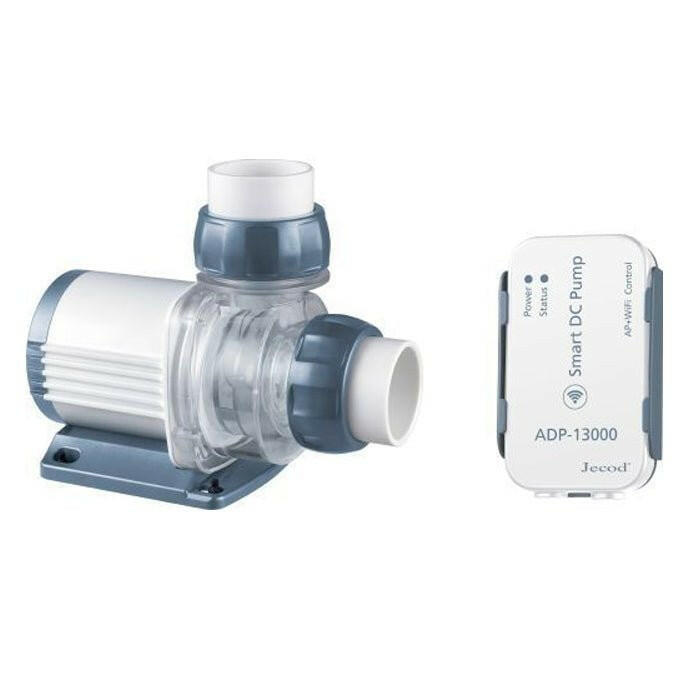

ADP-13000 Pump:
• Maximum output: 13000 litres per hour
• Minimum Output: 3900 litres per hour
• Maximum head height: 6.0 metres
• Watts: 95w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 240mm Long (with cage fitted) x 115mm Wide x 145mm High (Without Hose Tails)
• Inlet. Plastic Cage fitted to a 2 1/2" BSP male thread
• Outlet. 25mm, 32mm, 40mm, 50mm Hose Tails & 2 x 48mm & 2 x 58mm solvent weld adaptors fitted to a to an 2 1/2" BSP male thread
