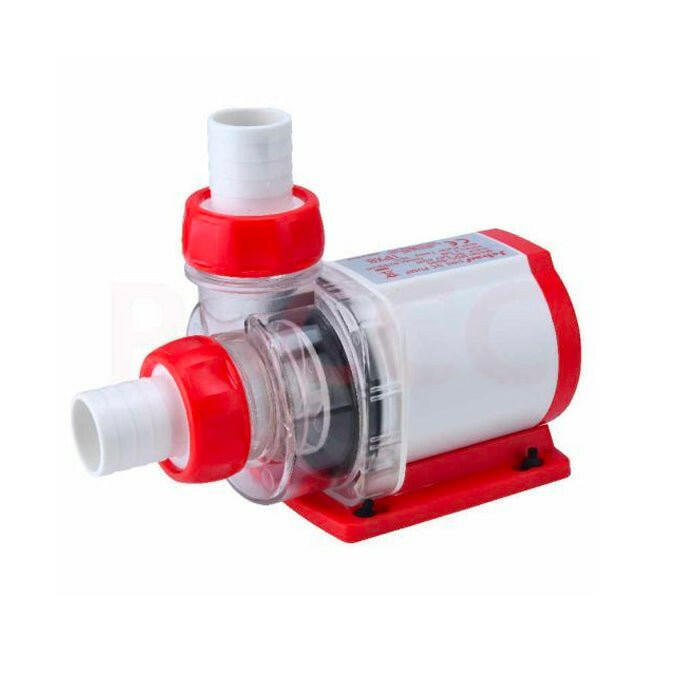

The new Jecod MDC Wi‑Fi Submersible Aquarium Return Pumps
For Wi‑Fi connectivity the 'Jebao Aqua' app is available to download from the Apple app store, Google Play store for Android or alternatively you can scan the QR code from the user manual as supplied with the pump
Suitable for both Submerged and Non Submerged applications
The MDC range of water pumps are designed with innovative 2020 Sine Wave Technology for ultra‑quiet operation in any marine or freshwater fish tank
Comes complete with a new digital LED Wi‑Fi controller with speed control settings between 30% and 100% in 1 watt increments. These controllers also feature a 'Feed' mode, allowing you to pause or delay the pump to allow feeding
The MDC range of pumps use innovative electronic motors designed to reduce power consumption by up to 65% and the included IC electronic detection ensures automatic power‑off protection when water levels drop too low
Features:
• SINE Wave Technology for Ultra Quiet Operation
• Suitable for Marine and Fresh Water Aquariums, rust free
• Digital Wi‑Fi Speed Controller for adjustable flow rate 30% to 100%
• 'Feed' Mode to stop pump for 10 minutes
• Digital display of power consumption
• Wear Resistant Ceramic Shaft for longer operation life
• Seals for input and output connections
• Improved head pressure performance over previous models
• New Closed Impellor Design for Quiet Operation
• Automatic power off protection when water levels drop too low
• Electronic motor designed to reduce power consumption by up to 65%
• IC Electronic Detection, automatic power off protection if no water
• Motor Protection if rotor is blocked
• No Copper elements
• Wear Resistant Ceramic Shaft for longer operating life
• For Submerged or Non Submerged applications
• Waterproof Standard: IPX8
Each unit ships with the pump, Wi‑Fi controller, 24V AC/DC adaptor and user manual — making setup fast and simple. Available in multiple flow capacities to suit small to large tanks, this energy‑efficient, Wi‑Fi enabled return pump range delivers quiet, reliable performance and smart control for any aquarium.
MDC2000 Pump:
• Maximum output: 2000 litres per hour
• Maximum head height: 2.5 metres
• Watts: 23w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 130mm Long (with cage fitted) x 70mm Wide x 90mm High (without hosetails fitted)
• Inlet. Plastic cage fitted to a 3/4" male thread
• Outlet. 16mm & 20mm Hosetails to a 3/4" male thread
• Components Supplied: Pump, Wi- Fi Controller, 24v 1.75a AC/DC Adaptor with UK 13a Plug, User Manual
MDC3500 Pump:
• Maximum output: 3500 litres per hour
• Maximum head height: 3.5 metres
• Watts: 28w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 160mm Long (with cage fitted) x 80mm Wide x 110mm High (without hosetails fitted)
• Inlet. Plastic cage fitted to a 1" female thread
• Outlet. 20mm & 25mm Hosetails to a 1" male thread
• Components Supplied: Pump, Wi- Fi Controller, 24v 1.75a AC/DC Adaptor with UK 13a Plug, User Manual
MDC5000 Pump:
• Maximum output: 5000 litres per hour
• Maximum head height: 4.0 metres
• Watts: 40w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (without hosetails fitted)
• Inlet. Plastic cage fitted to an 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Outlet. An 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Components Supplied: Pump, Wi- Fi Controller, 24v 2.5a AC/DC Adaptor with UK 13a Plug, User Manual
MDC6000 Pump:
• Maximum output: 6000 litres per hour
• Maximum head height: 4.5 metres
• Watts: 45w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (without hosetails fitted)
• Inlet. Plastic cage fitted to an 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Outlet. An 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Components Supplied: Pump, Wi- Fi Controller, 24v 2.75a AC/DC Adaptor with UK 13a Plug, User Manual
MDC8000 Pump:
• Maximum output: 8000 litres per hour
• Maximum head height: 5.2 metres
• Watts: 65w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (without hosetails fitted)
• Inlet. Plastic cage fitted to an 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Outlet. An 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Components Supplied: Pump, Wi- Fi Controller, 24v 4.0a AC/DC Adaptor with UK 13a Plug, User Manual
MDC10000 Pump:
• Maximum output: 10000 litres per hour
• Maximum head height: 6.0 metres
• Watts: 80w
• Transformer Voltage: 24v 100~240V 50/60Hz
• Dimensions: 200mm Long (with cage fitted) x 90mm Wide x 120mm High (without hosetails fitted)
• Inlet. Plastic cage fitted to an 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Outlet. An 1 1/2" male thread or supplied 20mm, 25mm, 32mm or 38mm hosetails
• Components Supplied: Pump, Wi- Fi Controller, 24v 5.25a AC/DC Adaptor with UK 13a Plug, User Manual
